| 新旧程度：9成新 | 类型：电子测量 | 品牌：泰克 |
| 型号：CT1 CT2 CT3 CT4 CT5 CT6 | 设备所在地：东莞 | 设备生产产地：美国 |
| 产品数量：12 |

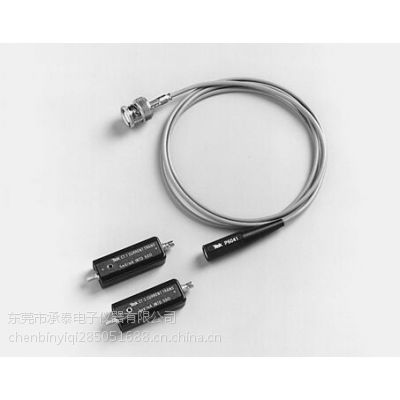

The CT1 Current Probes are designed for permanent or semi-permanent in-circuit installation. Each probe consists of a current transformer and an interconnecting cable. The current transformers have a small hole through which a current carrying conductor is passed during circuit assembly.
The P6041 Probe Cable provides the connection between the CT1 Current Transformers and a BNC oscilloscope input. A 50 Ω termination is required to terminate the cable when connected to a high-impedance (1 MΩ) oscilloscope input. One probe cable can be used to monitor several current transformers that have been wired into a circuit.
***回收您手里的闲置仪器，我们的诚信是的，给您的价格是的，您如果有想把手里的仪器换成RMB的话那么请联系我，我是能帮助您获得金钱的好帮手，承泰电子仪器有限公司,虔诚的希望能帮到您。
公司长期回收与供应进口仪器因库存与价格常有变动，购买之前请先电话联系！！回收+供应仪器
经营类别有示波器、频谱仪、综测仪、网络分析仪、信号源、功率计、频率计、电子负载等
欢迎各位来电咨询！电话；13538338546 QQ；481865899 承泰仪器 陈生
Bandwidth (typical) | 25 kHz to 1 GHz |
Rise Time | 350 ps |
Sensitivity(into 50 Ω) | 5 mV/mA |
Accuracy | ±3% |
Magnetizing Inductance | 6 μH |
Leakage Inductance | 2.4 nH |
Insertion Impedance: | |
at 10 MHz | <1 Ω |
at 100 MHz | 2 Ω |
at 1 GHz |
|
Max. Bare Wire Size | #14 wire |
1.78 mm (0.070 in.) | |
Max. Bare Wire Voltage: | |
RMS | 175 VRMS CAT I |
Peak | 1000 V*1 |
DC | 175 V |
Max. Peak Pulse Current | 12 A |
Max. Continuous Current (RMS) | 450 mA |
Amp-second Product | 1 × 10-6 A*Sec |
L/R Time Constant (droop) | >6.35 μs |
Propagation Delay | 3.25 ns |
*1 (<3.25% Duty Factor).
